This video shows the Pearson Packaging Systems RPI Robotic Partition Inserter erecting multicell, air cell, and Z partitions and inserting them into moving cases at up to 20 a minute for glass bottle lines. A FANUC robot tracks each case on a continuous-motion conveyor, a pick-off carriage singulates every partition for a reliable single pick, and off-spec partitions drop clear automatically so the cell keeps running. Scalable from one to three robots, the RPI delivers a fully partitioned case every cycle, ready for bottles.

Watch the Pearson Packaging Systems CE35-XL Case Erector form and bottom-seal oversized corrugated cases with 3-inch pressure-sensitive tape. Opposed vacuum cups erect each blank horizontally and chain-driven flight lugs hold it under positive control, keeping large cases square from the elevator-fed magazine to the tape head. A tip-up chute then turns every sealed case upright, open top up and ready to pack. For manufacturers running oversized and extra-tall cases, the CE35-XL delivers consistent erecting, secure wide-seam sealing, and pack-ready output in one machine.

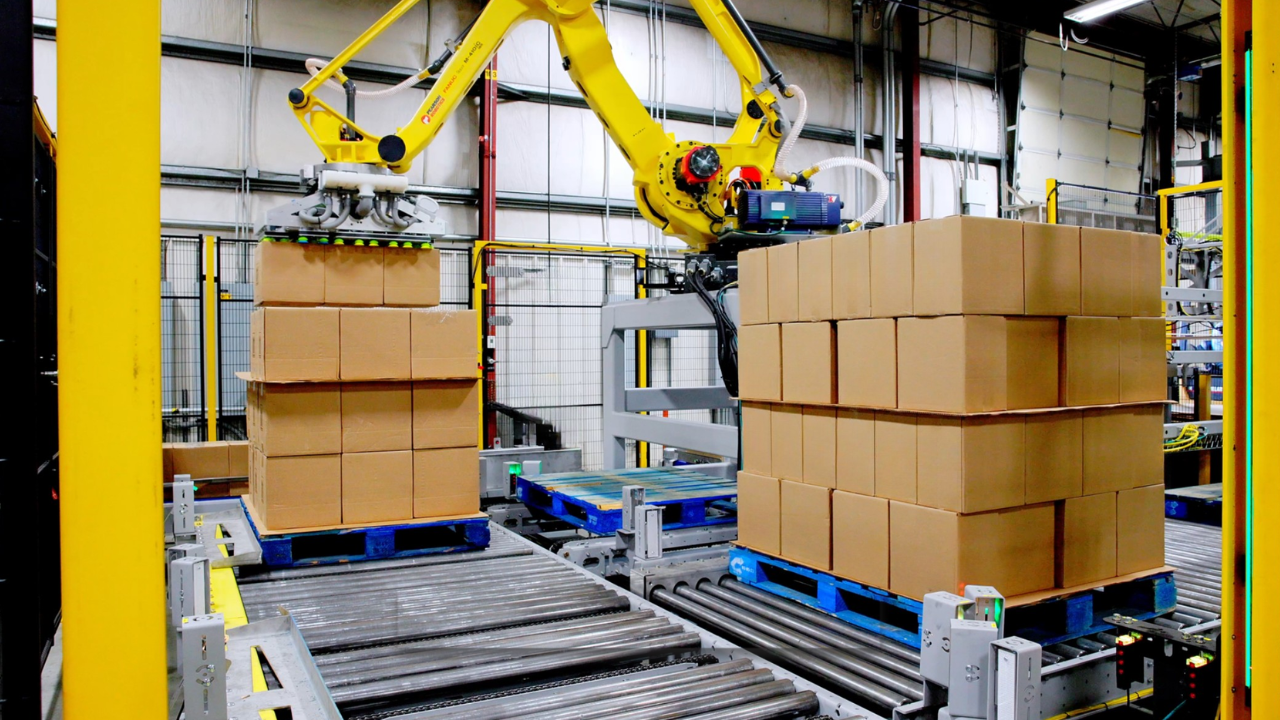

The Pearson RPC-MX robotic palletizer picks and places complete case layers in a single move, helping increase throughput while handling heavy products with precision. In this application, a second robot forms and places slip sheet caps between layers, adding stacking strength and helping loads maintain their shape through handling, storage, and transit. With recipe-driven changeovers and configurable tooling, the RPC-MX adapts to a wide range of case sizes, pallet patterns, and production requirements.

This video showcases the Pearson Packaging Systems BF40 Bliss Former producing three-piece bliss cases from a body wrap and two end panels. Vacuum-assisted feeding picks a single blank from each of three magazines, while a servo-driven mandrel and actuated die components precisely position each piece. High-pressure compression then sets the hot-melt bond along every glue line. Nordson E400 electric glue guns provide individual pattern control, with settings saved for each case size. Designed for products that cannot support their own stacking load, the BF40 consistently forms square, rigid bliss cases at speeds of up to 40 cases per minute.

This video showcases the Pearson RPC-DF Dual Floor Palletizing Cell building transport-ready loads from sealed cases. A zoned motor-driven infeed and case positioning device square each case for accurate picking, while a patented multi-zone vacuum end-of-arm tool handles cases, base sheets, and slip sheets with continuous 360-degree rotation and no external wiring. Dual floor-level load zones allow pallet exchange without interrupting production, and muting light curtains support safe operator access while palletizing continues in the adjacent station. Designed for reliable palletizing and continuous operation, the RPC-DF combines simplified tooling, reduced wear points, and uninterrupted production in a compact footprint.

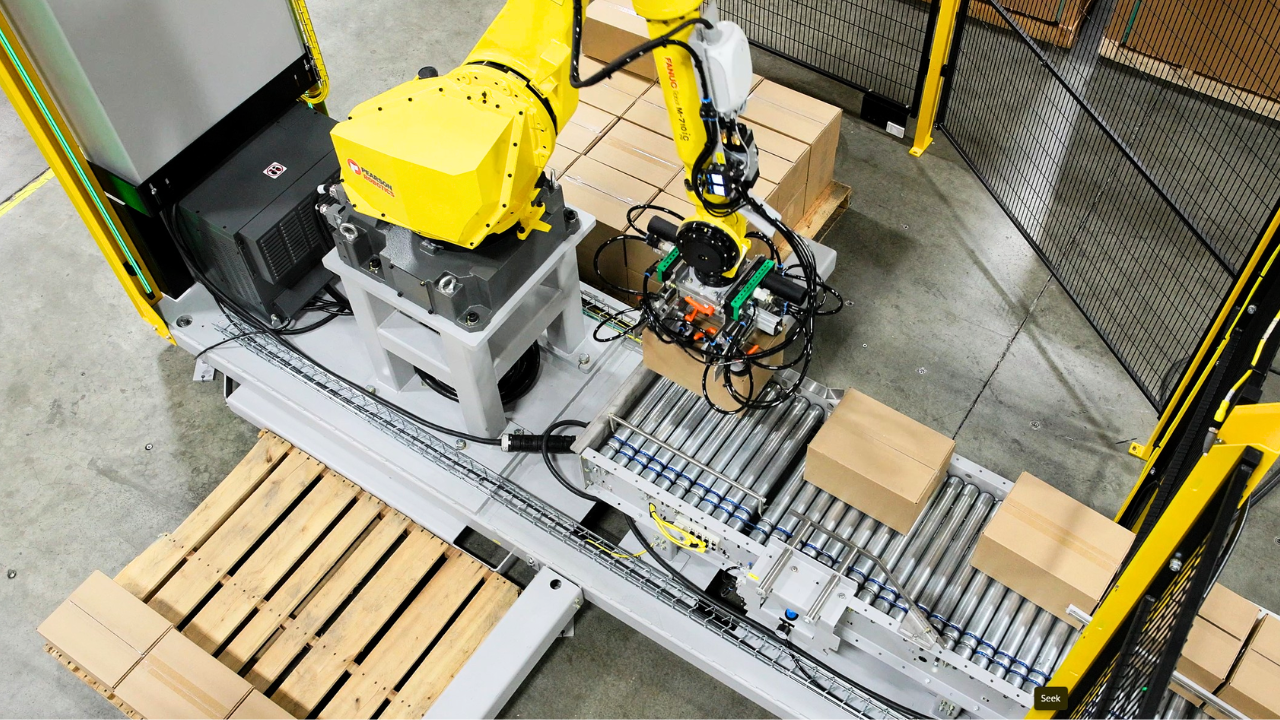

This video showcases the Pearson Dual Floor Robotic Palletizing Cell, a straightforward robotic palletizing solution that handles multiple sealed case sizes without stopping for pallet changes. A single FANUC robot serves two floor-level build stations, keeping production running while pallet loads are exchanged, and delivering continuous operation, multi-SKU flexibility, and a compact footprint.

The RPC-MX Configurable Robotic Palletizer streamlines mixed-SKU palletizing with recipe-driven operation, automatic slip-sheet handling, dual pallet build stations, and a FANUC robotic arm with multi-case vacuum EOAT, enabling flexible pallet pattern creation and high-throughput end-of-line packaging automation.

This video shows the Pearson TF25 tray former forming corner-post trays at up to 25 per minute. A vertical magazine stages flat blanks, and a vacuum pull-down feeds them one at a time. An active forming section with a rollover mechanism squares each blank as the mandrel drives it into shape, hot melt bonds the corner posts, and powered compression belts hold every fold as the adhesive cures. The result is a dimensionally consistent tray, formed square to specification on a heavy-duty welded tubular frame, cycle after cycle.

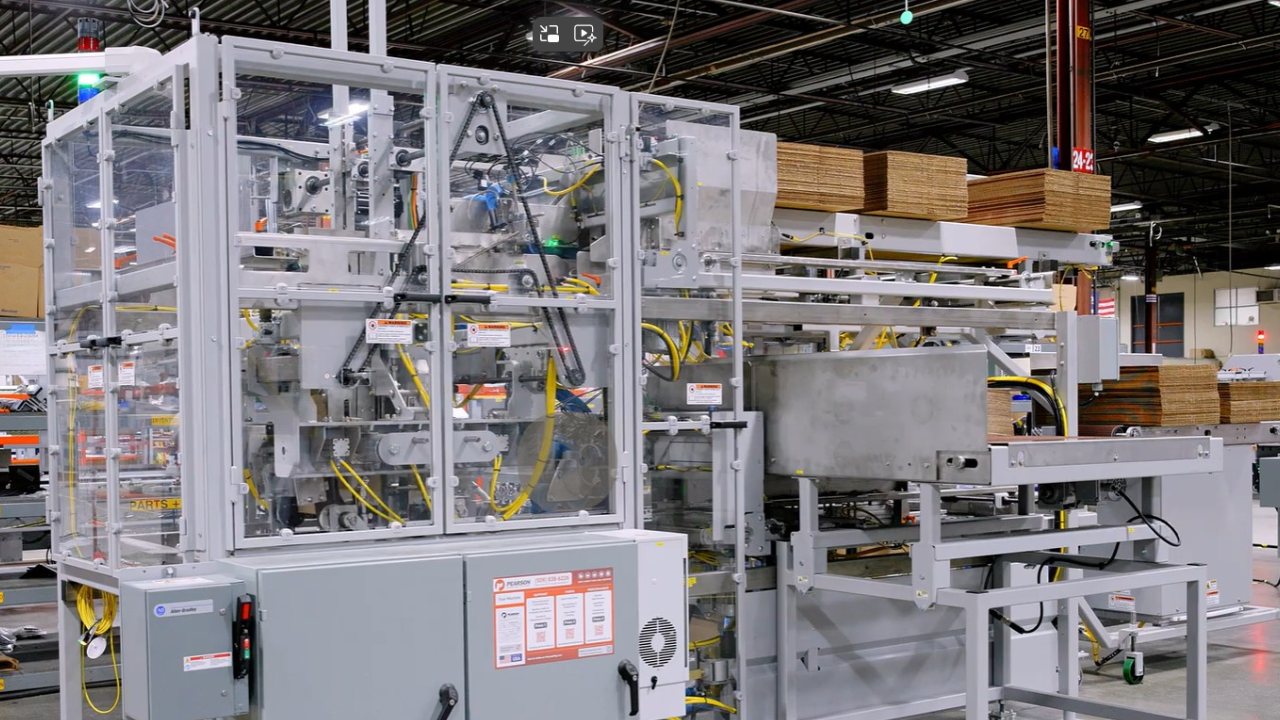

This video shows the Pearson BF25 Bliss Former building extra strong, shelf ready Bliss cases with an H divider at up to 25 bliss cases per minute. Static mandrel forming and precise hot melt bonding keep each case square from the plant to the shelf, protecting product and cutting damage and returns. The H divider splits one case into two compartments for two products in one box and reinforces the walls for heavier loads, built for heavy product lines.

Watch the Pearson CE35 Case Erector form and bottom-seal corrugated cases with hot melt glue for a heavy jugged-container line at up to 35 cases per minute. Using horizontal erecting with dual opposed vacuum forming and a mandrel-compressed bottom, the CE35 produces tight, square, rigid cases cycle after cycle. For manufacturers running heavy containers across multiple case sizes, it delivers consistent forming, a secure bottom seal, and dependable 24/7 operation in a compact footprint.
