Vídeos

Aplicación de automatización

2024 06 25 12 28 40

Robotic Case Packing RTL for Pulp Inserts

End of arm tooling for specified pulp tray size range (with floating compensation, and adjustability for 4 and 6 packs. FANUC Robot picks and places top pulp inserts into product filled cases, and features extended magazines.
2024 06 25 12 14 12

Erect, Pack, Seal & Palletize: Robotic Case Packing for Baked Goods

In this application, a Pearson case erector and case sealer form consistently square and securely sealed cases. Cartons are conveyed into the load position. The robot will pick up two cartons from the infeed conveyor and place the cartons into two cases in a smooth motion.
2024 06 25 10 19 14

Robotic Packing for Bagged Medical Equipment

This robotic top loader uses delta robots to pick bagged medical equipment and place them into cases. A vision system is used to detect product orientation. This process is repeated until the carton, tray or case is full.
2024 06 05 08 36 06

Random Robotic Case Erecting – RRCE for Oversized Cases

This Random Robotic Case Erector is designed for oversized cases. (3) vertical magazines hold knockdown cases, and an alignment plate is used to square cases prior to forming. Opposing vacuum is used to open cases, and tape is used to seal bottom case flaps. A tipping mechanism flips cases on their side as they exit the cell.
2024 06 04 13 42 19 1

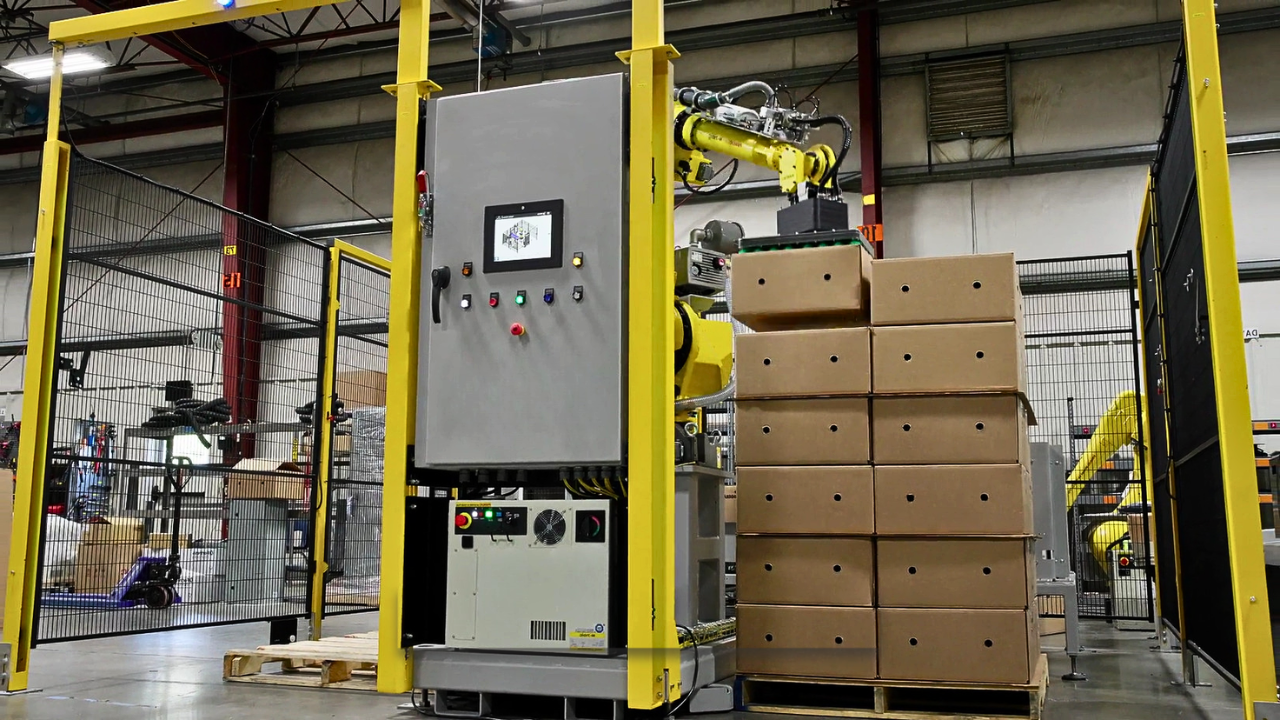

RPC-DF Dual Floor Palletizer with Barcode Scanner

This robotic palletizer has dual build stations for continuous operation in a compact footprint. Capable of picking cases up to 40lbs at rates up to 12 cases per minute, it has an integrated barcode scanner to determine which pallet stack cases belong.
RTL Sugar

Robotic Packing for Bags of Powdered Sugar

This robotic case packer incorporates a vision system to detect the orientation of products. The FANUC robot is equipped with a double chamber vacuum tool for picking and placing bags into cases.
RPC WDF 2 1

RPC-WDF Washdown Dual Floor Palletizer

This robotic palletizer is designed with low pressure washdown construction and is ideal for use in primary packaging environments. Dual build stations allow for continuous operation in a compact footprint, and the FANUC robot is able to pick cases weighing up to 40lbs at rates up to 12 cases per minute.
Robot Push Mechanism

In this application, a Pearson case erector and case sealer form consistently square and securely sealed cases. Products are uprighted in a pocketed belt, then collected and compressed by a robot with custom end-of-arm tooling before being loaded into cases using a vacuum pick head. Filled cases are then palletized for shipping.
RPC Cases

Robotic Palletizing with Dual Build Stations

This robotic palletizer has dual build stations to increase stack rates. A FANUC robot uses a multi-functional end-of-arm tool to pick pallets, slip sheets and cases.
RPC Bags

Robotic Palletizing for Boxes & Bags of Glue Beads

This robotic palletizer picks pallets, slip sheets, boxes and bags with a quick and simple end-of-arm tool changeover. The FANUC robot is able to handle heavy products with ease.
