TF25-BB Tray Former for the Protein Sector

Hogar » Equipo » Secondary Packaging Equipment » TF25-BB Tray Former

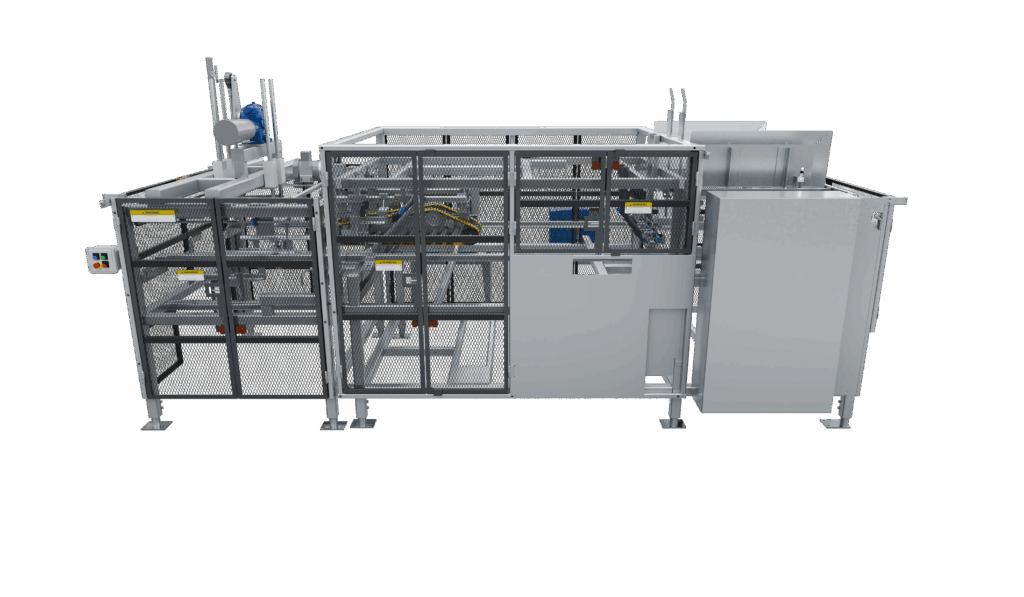

TF25 Banner

The TF25 is a rugged, mechanically driven tray former engineered for high reliability and consistent output. Capable of producing up to 25 trays per minute, it features an active forming section with a rollover mechanism for precise tray construction. Built on a heavy-duty welded tubular frame, the TF25 integrates Allen-Bradley controls with a user-friendly PanelView HMI for intuitive operation. PackML-compliant and optimized for total cost of ownership, the TF25 offers flexibility through custom engineering options, seamless system integration, and comprehensive aftermarket support ensuring maximized uptime and long-term performance.

Especificaciones
Vídeos
Consigue una cotización

Especificaciones

  • Velocidad
    • Hasta 25 cajas/min
  • mín. Tamaño de la caja
    • 19" (L) x 13.50" (W) x 7" (H)
  • máx. Tamaño de la caja
    • 26" (L) x 20" (W) x 10.50" (H)
  • Sellado
    • Pegamento de goma caliente
  • Construcción
    • Bastidor tubular soldado de alta resistencia
    • Acero suave
  • Rango de tamaño de la máquina (pies)
    • 8ft 6.75in (L) x 18ft 9.25in (W) x 8ft 10.75in (H)
  • Control S
    • PLC MicroLogix de Allen Bradley
  • Soporte de cajas

    • Breaker Box Beef Tray

Vídeos

High-Output Tray Former | Pearson TF25

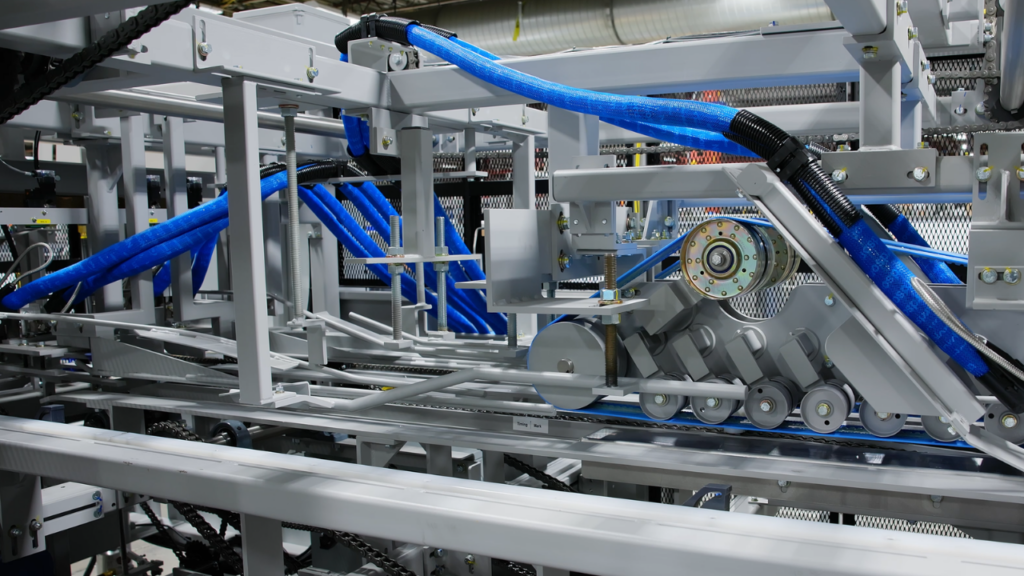

This video shows the Pearson TF25 tray former forming corner-post trays at up to 25 per minute. A vertical magazine stages flat blanks, and a vacuum pull-down feeds them one at a time. An active forming section with a rollover mechanism squares each blank as the mandrel drives it into shape, hot melt bonds the corner posts, and powered compression belts hold every fold as the adhesive cures. The result is a dimensionally consistent tray, formed square to specification on a heavy-duty welded tubular frame, cycle after cycle.
Ver video

TF25-BB

The TF25 is a rugged, mechanically driven tray former engineered for high reliability and consistent output. Capable of producing up to 25 trays per minute, it features an active forming section with a rollover mechanism for precise tray construction. Built on a heavy-duty welded tubular frame, the TF25 integrates Allen-Bradley controls with a user-friendly PanelView HMI for intuitive operation. PackML-compliant and optimized for total cost of ownership, the TF25 offers flexibility through custom engineering options, seamless system integration, and comprehensive aftermarket support ensuring maximized uptime and long-term performance.
Ver video
